PancakeDetector

Last updated Mar 7, 2023

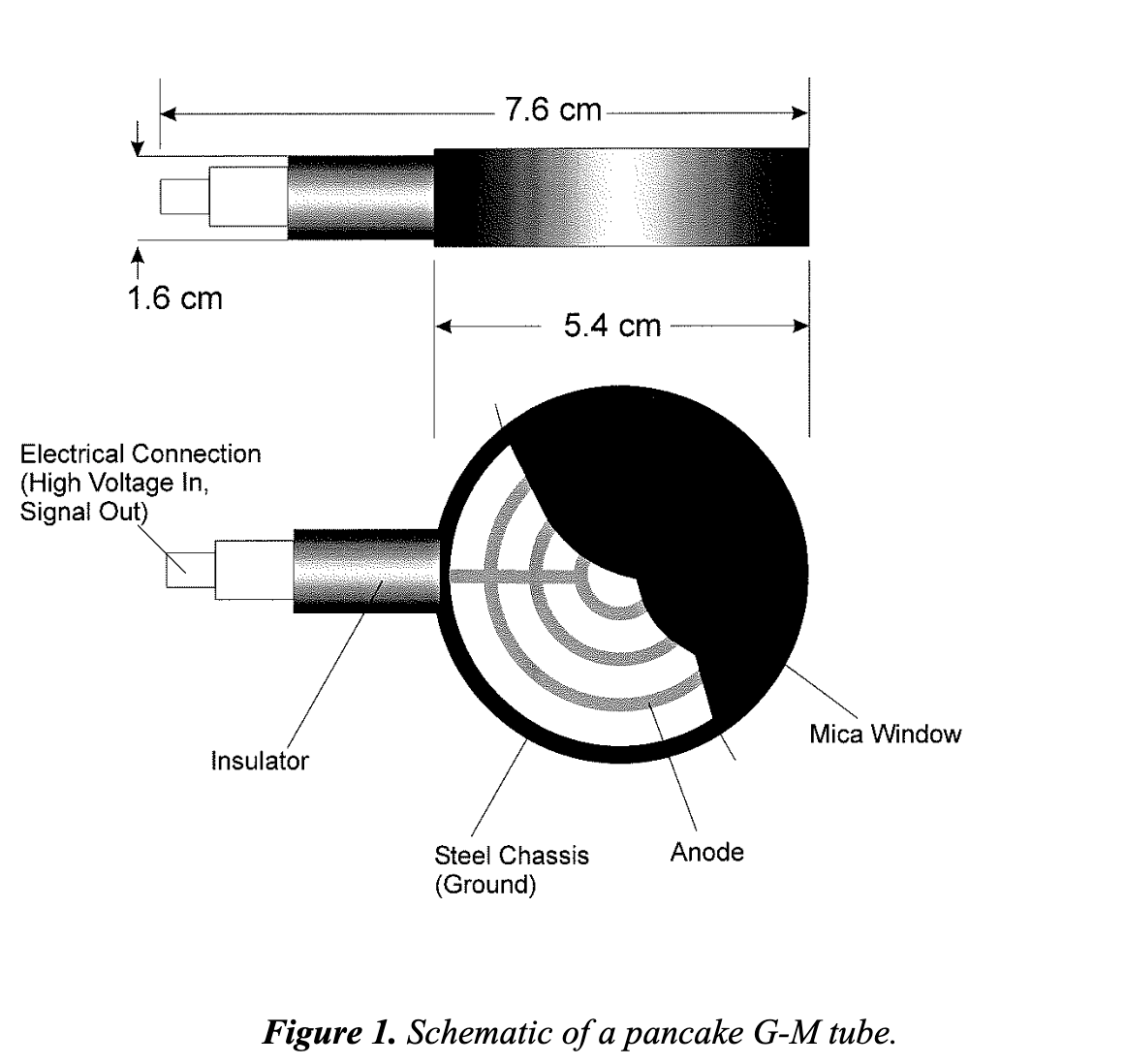

Variation of a GeigerMullerTube. May be referred to as a G-M counter. Measures approx 2 in across and 1/2 inch thick. The face of the detector is a mica “window.” Particles pass through and interact with the gas inside, allowing electrons to move from the chassis (cathode) to the internally suspended high voltage anode.

https://ehs.berkeley.edu/sites/default/files/g-m_pancake_detectors.pdf
